Output response filtering lets xpander agents handle tool responses of any size without overflowing the context window. A tool or connector might return a 50KB JSON response, which is mostly noise. You configure a per-tool output schema once in Agent Studio, and xpander trims the response down to the fields you whitelist before it reaches your framework.

​
Configure an output schema

1

Open the Tools tab

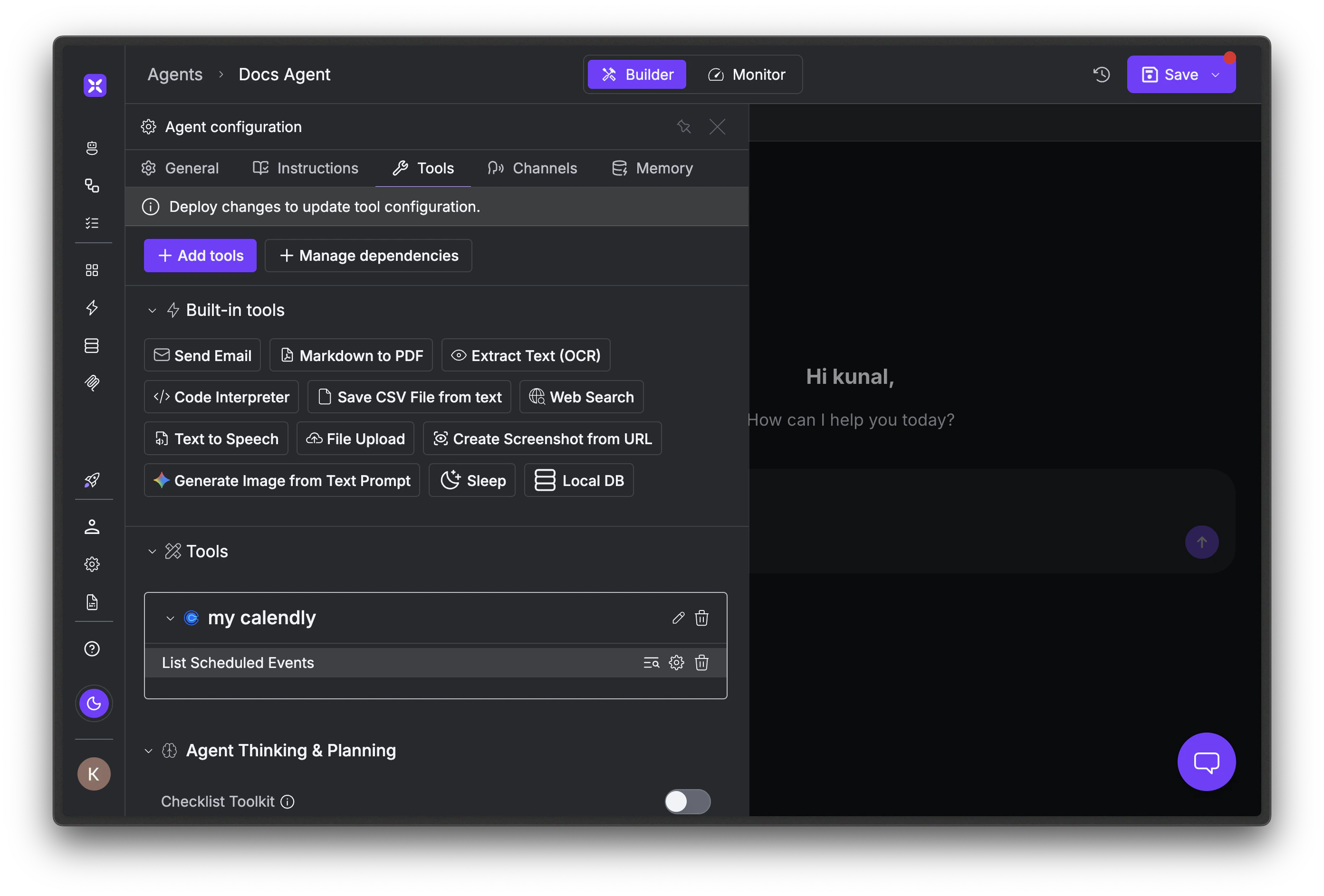

Open your agent in Agent Studio and go to the Tools tab. You’ll see your attached connectors listed under Tools.Tools tab showing attached connectors
2

Open the Output schema tab

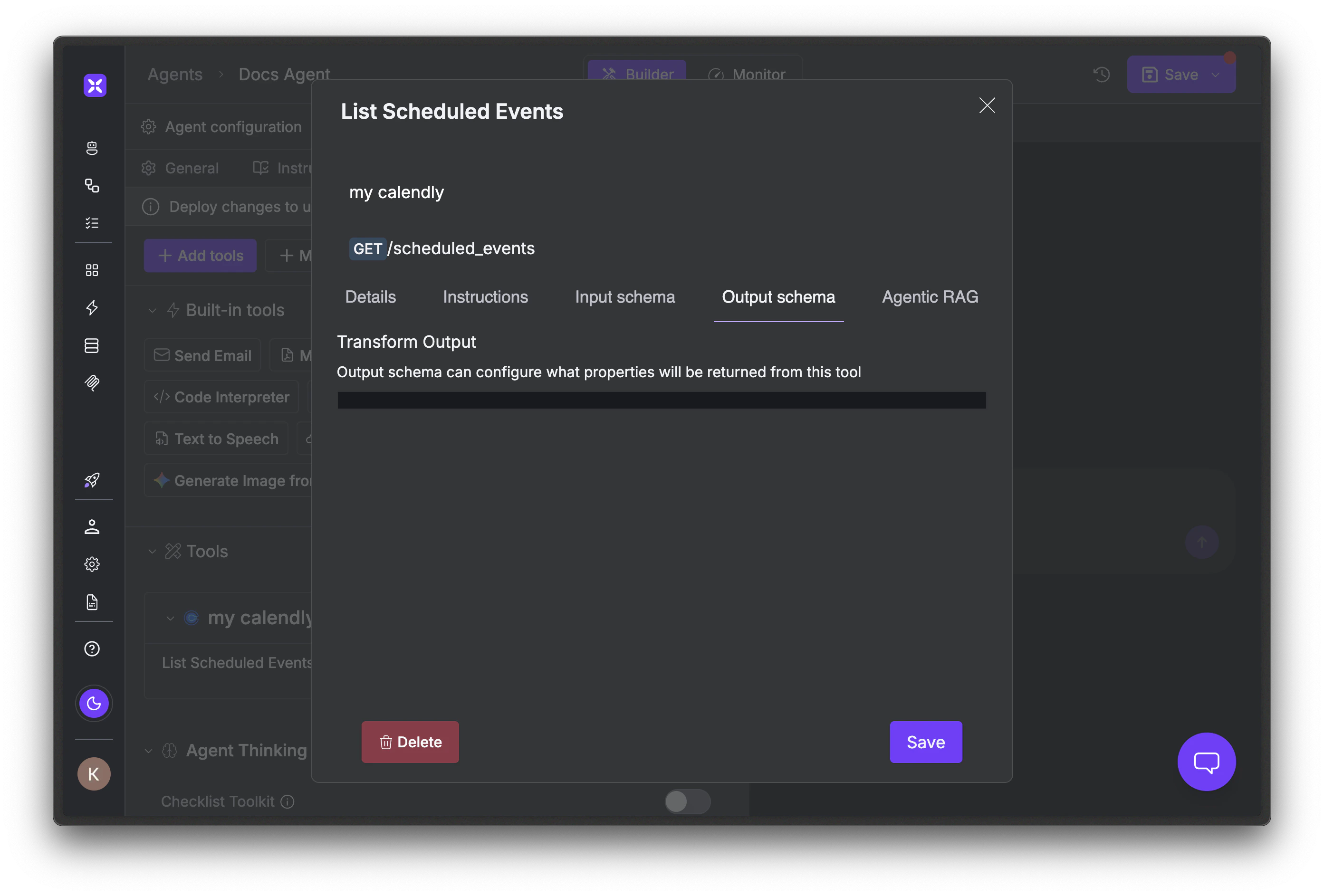

Click the edit icon next to the tool you want to filter. In the dialog, select the Output schema tab. Declare the fields you want the agent to see. Anything you omit is dropped before the response reaches the LLM.Output schema tab on a connector toolWrite the schema from a real captured response, not the API docs. Open the agent’s run history, expand a tool result to see the full JSON shape, and pick only the fields the agent actually needs to answer questions. Be aggressive. Leave a field out and add it back only if the agent fails without it.
3

Save and publish

Click Save, then Deploy changes at the top of the Builder. The schema applies to every invocation from that point on, across all frameworks.

​
Verify the filtered shape from code

Once a schema is published, invoke the tool directly and inspect what the LLM actually receives:
from xpander_sdk import Agents

agent = await Agents().aget(agent_id="agt_01H...")
tool = agent.tools.get_tool_by_name("SalesforceQueryAccounts")

result = await agent.ainvoke_tool(
    tool=tool,
    payload={"body_params": {"q": "SELECT Id, Name FROM Account"}},
)

print(result.result)  # Already filtered by the configured output schema.
To confirm what was removed, briefly clear the schema in Agent Studio, capture the full response, then re-enable it. The diff is exactly what you’ve cut from the LLM’s context.

​
Troubleshooting

Output response filtering only applies to remote connector calls, not local @register_tool functions. Whatever you return from a Python function reaches the LLM verbatim. To slim local-tool output, do it inside the function before returning.
The schema dropped a field the agent actually needed. Add it back and republish. Common case: stripping created_at because it seems unnecessary, then a user asks “when did we onboard them?” and the agent guesses.
Output schemas are allow-lists. If the upstream API adds a field, your schema silently drops it. When a connector announces an API update, re-check your schemas against a fresh captured response.
Either no schema is configured, the tool you filtered isn’t the one driving most tokens, or the response was already small. Use the run history to find which tool calls return the largest payloads and filter those first. List endpoints and search results are usually the biggest wins.

​
