Model Context Protocol

The api service serves an MCP endpoint at /mcp/. It is the xpander API itself, control plane and data plane, exposed over MCP: a connected client lists and runs agents, reads tasks and threads, reaches skills and their operations, custom functions, workspace files, schedules and usage. It is not an agent; each operation is one API call. To talk to Omni, the built-in agent, use its own endpoint (see the note below). Every edition authenticates this endpoint with OAuth 2.1: xpander cloud, Hybrid and Air-Gapped alike. An x-api-key header is not accepted here. The server answers 401 to it, as to any request without a bearer token.

Omni, the built-in agent, has its own endpoint: https://omni.xpander.ai/mcp on xpander cloud, /omni-mcp/ on a self-hosted install. On a self-hosted install it answers 404 until the chart sets global.mcp.publicUrl. Setup per client is on Omni in your MCP client. This page is about the agents endpoint.

The endpoint

Edition	Address
xpander cloud	`https://api.xpander.ai/mcp/`
Hybrid and Air-Gapped	`https://api.<your domain>/mcp/`, on the install’s API host

The transport is HTTP. Keep the trailing slash.

How a client signs in

The client posts to /mcp/ without a token. The server answers 401 with WWW-Authenticate: Bearer resource_metadata=<API host>/.well-known/oauth-protected-resource.
The client reads that metadata and registers itself at /oauth/register.
It opens /oauth/authorize in your browser with a PKCE challenge. You sign in to xpander. A consent page names the client, your organization, your account and the address the code returns to. Click Approve.
The client exchanges the code at /oauth/token.
Every call to /mcp/ from then on carries Authorization: Bearer <token>. initialize answers with serverInfo.name set to xpander.ai MCP.

Every call runs as the person who approved and, where systems allow, with that person’s permissions. Clients that support remote MCP OAuth discover the whole flow from the address alone. Nothing else goes into the client configuration.

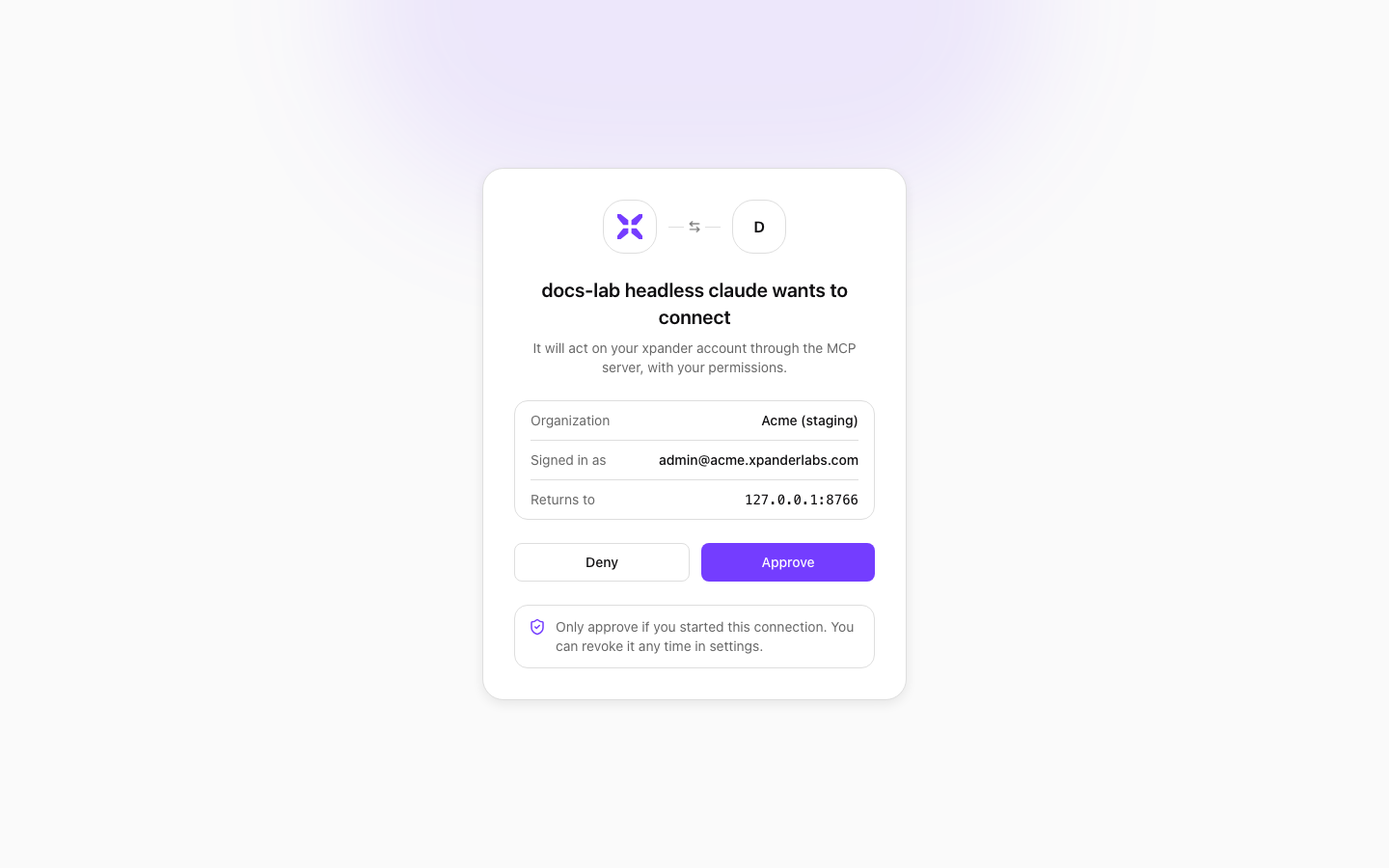

Consent page reading 'docs-lab headless claude wants to connect', with Organization, Signed in as and Returns to rows, and Deny and Approve buttons — The consent page a client's sign-in opens: the client's name, the organization, the signed-in account and the address the code returns to. Shown with sample data.

Check the challenge yourself:

curl -si -X POST https://api.xpander.ai/mcp/ -H "Content-Type: application/json" -d '{}'

The answer is a 401 whose WWW-Authenticate header points at the resource metadata. The same call with Authorization: Bearer <token> reaches the endpoint.

Claude Code

claude mcp add --transport http xpander https://api.xpander.ai/mcp/

Then run /mcp inside Claude Code, pick xpander and complete the browser sign-in. On a self-hosted install replace the address with your API host. A headless run has no browser. Pass a token you already hold, obtained through the flow above, and add the server at user scope:

claude mcp add --transport http xpander https://api.xpander.ai/mcp/ \
  --header "Authorization: Bearer <token>" -s user
claude -p "List my agents and their ids"

Claude Code reports the server as Connected. A prompt that names one of your agents runs it through invoke_agent and returns the agent’s answer with the task id.

Claude Desktop, Cursor and VS Code

No key goes into any of these files. The client opens the sign-in in the browser the first time and keeps the token.

Claude Desktop
Cursor
VS Code

Edit ~/Library/Application Support/Claude/claude_desktop_config.json (macOS) and restart Claude Desktop:

{
  "mcpServers": {
    "xpander": {
      "command": "npx",
      "args": ["-y", "mcp-remote@latest", "https://api.xpander.ai/mcp/"]
    }
  }
}

~/.cursor/mcp.json, or .cursor/mcp.json inside a project:

{
  "mcpServers": {
    "xpander": { "url": "https://api.xpander.ai/mcp/" }
  }
}

.vscode/mcp.json:

{
  "servers": {
    "xpander": { "type": "http", "url": "https://api.xpander.ai/mcp/" }
  }
}

What the endpoint exposes

After initialize, tools/list returns these operations:

Group	Operations
Agents	`list_agents`, `invoke_agent`, `xpander_discover_agents`, `xpander_get_agent`, `xpander_get_agent_skills`, `xpander_build_agent`
Tasks and threads	`create_task`, `get_task`, `get_agent_threads`, `get_thread_messages`, `xpander_schedule_agent_task`, `xpander_list_agent_tasks`, `xpander_get_task`, `xpander_get_task_llm_usage`
Agent files	`xpander_list_agent_files`, `xpander_read_agent_file`, `xpander_upload_agent_file`, `xpander_share_agent_file`
Workspace	`xpander_workspace_bash`, `xpander_list_workspace_skills`, `xpander_install_workspace_skill`
Custom functions	`xpander_list_custom_functions`, `xpander_get_custom_function`
Toolkits	`xpander_list_toolkits`, `xpander_get_toolkit_tools`, `xpander_invoke_toolkit_tool`
Skills catalog	`xpander_list_connectors`, `xpander_search_connectors`, `xpander_list_connector_operations`, `xpander_search_connector_operations`, `xpander_get_connector_operation_schema`, `xpander_invoke_connector_operation`

A run started with invoke_agent is a task like any other. It appears in the Task Manager and in GET /v1/tasks/{task_id}.

Skills your agents reach over MCP

The other direction, an agent calling an MCP endpoint as a skill, is set up under Settings > MCP registry or from an agent’s Add skill panel. See Add a skill and MCP gateway. There is no per-agent MCP address to configure.

Self-hosted installs

The endpoint is https://api.<your domain>/mcp/ on the install’s API host. The Omni surface /omni-mcp/ answers 404 until global.mcp.publicUrl is set. The /oauth/authorize step redirects the browser to ${APP_URL}/oauth_login, read from the api service’s environment. APP_URL must be the UI origin. When it resolves to the API host instead, the browser lands on {"detail":"Not Found"} in place of the sign-in page. Set the value in the chart and upgrade the release:

api:
  env:
    APP_URL: https://<app-host>        # the UI origin; /oauth/authorize sends the browser here
    NEW_APP_URL: https://<app-host>

The values file’s comment that MCP OAuth is unsupported on Air-Gapped describes this condition. Until the value is set, a person can finish a sign-in by hand: open https://<app-host>/oauth_login?<the query string the redirect carried>. The UI serves that route, shows the consent page and returns the code to the client.

Next steps

Omni in your MCP client

Ask the built-in agent for anything it can do

MCP gateway

Both directions on a self-hosted install

REST API

The same agents over HTTP with an API key
