Action nodes execute fixed operations without an LLM. Seven types are available.
Action nodes vs. agent nodes: Action nodes execute a fixed operation (API call, code, email) with predictable results. Agent nodes use AI to reason about data, make decisions, and generate output. If the step has a single correct behavior given the inputs, use an action node. If it requires interpretation or judgment, use an agent node.
NodeWhat it doesBest for
ActionInvokes a tool from 2,000+ connectorsCalling external APIs (Salesforce, GitHub, Slack, BigQuery)
CodeRuns Python in a sandboxed editorCalculations, data transformation, custom logic
EmailSends an email via a connectorNotifications, confirmations, reports
OCRExtracts text from imagesProcessing invoices, receipts, scanned documents
Custom FunctionCalls a reusable function you’ve builtShared logic across multiple workflows
WorkflowRuns another workflow as a sub-processDecomposing complex automations into modular pieces
Upload FileUploads a file to a destinationStoring generated reports, moving attachments

​
Invoke tools from 2,000+ connectors

The Action node connects to any of the 2,000+ pre-built connectors (Salesforce, GitHub, Slack, Jira, BigQuery, Google Sheets, Stripe, HubSpot, and more) and executes a specific tool from that connector. Where an Agent node would reason about which tool to call, the Action node calls exactly the tool you select with exactly the inputs you define. When you add an Action node, click Select Tool to open the tool browser. It organizes tools into two categories:
  • Connectors lists all 2,000+ integrations alphabetically, each with its available actions. Search by name to find the right one.
  • Built-in actions provides pre-built Xpander functions for common operations that don’t require an external connector.

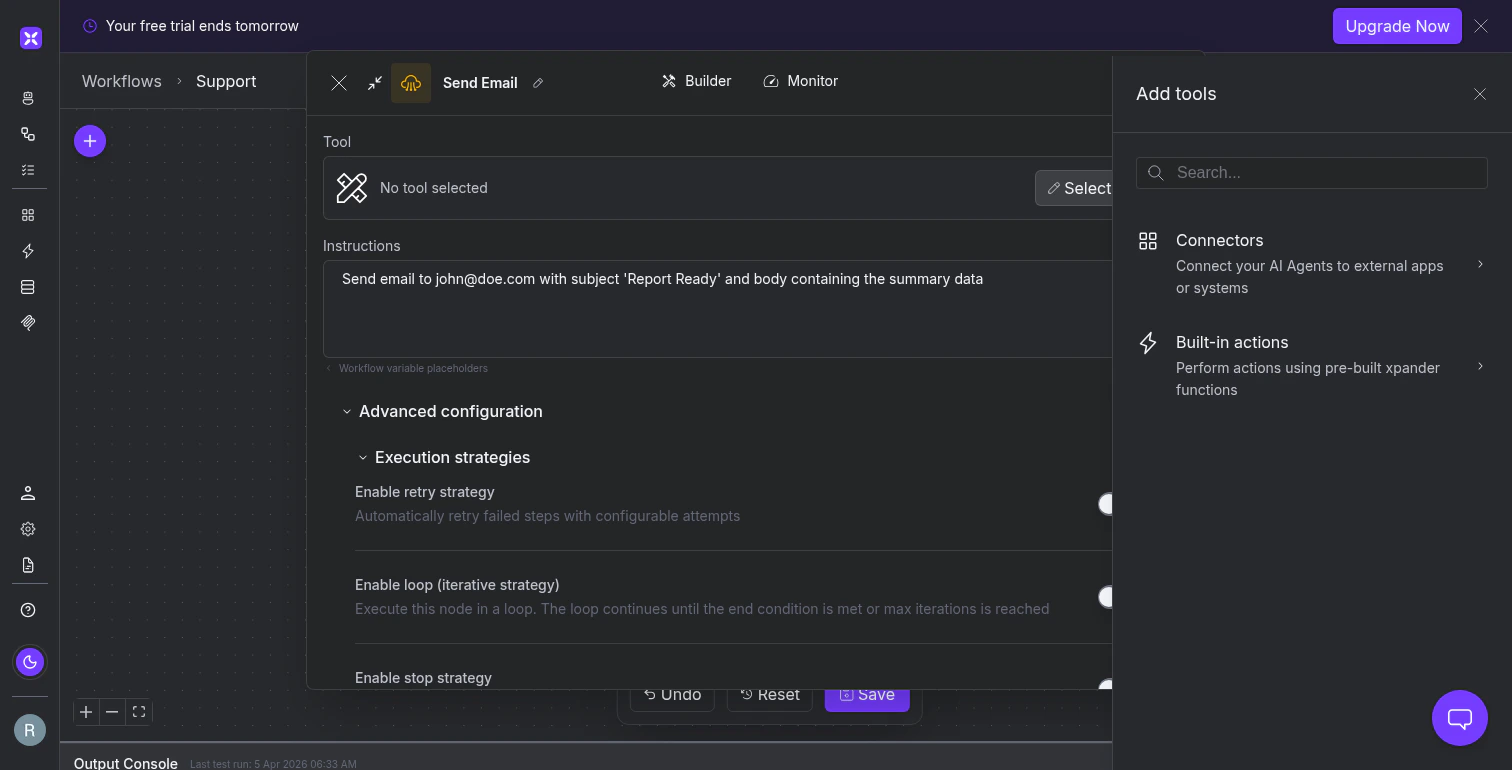

Action node tool browser
Once you select a tool, write instructions describing what the node should do with its inputs. Use workflow variable placeholders to inject data from previous steps:
Create a new Jira ticket in the SUPPORT project. Set the summary
to the customer's issue description and assign it to the on-call
engineer. Priority should match the severity level from the
classifier step.
After selecting a tool, the Tool input schema section in Advanced Configuration populates with the tool’s expected input fields. Use this to define or override specific field values rather than relying on instructions alone. The Action node also supports an Enable stop strategy toggle in its execution settings. When enabled, the workflow can terminate based on the action’s failure conditions rather than propagating bad data downstream. Like other nodes, it supports retry and loop strategies for handling transient failures and iterative processing.

​
Run Python code for calculations and transformations

The Code node provides a Python editor directly in the workflow canvas. It has syntax highlighting, line numbers, and comes with scaffold code for a handler function. Execution is deterministic with no LLM involved. Two features extend the Code node beyond a basic script runner: Packages lets you add pip dependencies (type a package name and it’s available at runtime). Need pandas for data manipulation or python-dateutil for date parsing? Add the package and import it. Generate with AI lets you describe what the code should do in natural language, then review and modify the generated implementation. The Code node outputs text by default, but you can change the Output type in Advanced Configuration to match what downstream nodes expect. Loop and stop strategies are available for iterative processing and conditional workflow termination.
Code node vs. Agent node for code: The Code node executes Python you’ve written (or generated). It’s deterministic: same input, same output, every time. If you need an LLM to write and adapt code dynamically at runtime based on varying inputs, use an Agent node with coding tools instead.

​
Other action node types

The remaining five node types handle specific operations. Each follows the same pattern: select a tool or resource, write instructions, and configure execution strategies in the advanced settings.
Sends an email through a connector you choose (Gmail, SendGrid, Outlook, or another email integration). After selecting a tool, the input schema populates with to, subject, and body_html fields.Use workflow variable placeholders to pull values from previous steps. Retry is particularly useful here since transient email delivery failures are common.
Extracts text from images and scanned documents. Select an OCR integration, point it at an image via the file_url input field, and the node returns extracted text for downstream processing. Pair it with a Classifier or Summarizer to structure the output.
Calls a reusable function you’ve defined outside the workflow. Select a function from the dropdown (or create one with + New function) and write instructions for how it should be used.The Run asynchronously toggle fires the function without waiting for a result, useful for side effects like audit logging.Use Custom Functions when the same logic appears in multiple workflows, so updates propagate from a single source. For one-off logic specific to a single workflow, the Code node is simpler.
Runs another workflow as a sub-step. Select a workflow from the dropdown (or create one with + New workflow), and its output becomes the input for the next node in the parent.Like Custom Functions, it supports Run asynchronously for fire-and-forget operations. Use this when a sequence of steps forms a logical unit that could be tested independently or reused across multiple parent workflows.
Moves files to a destination you specify. Write instructions describing what to upload and where, and configure the destination through the tool input schema in Advanced Configuration.

​
Choosing the right action node

DecisionUse thisWhen
Action vs. CodeActionA connector exists for the service and you want managed auth
CodeNo connector exists, or the operation involves data manipulation beyond a single API call
Code vs. Custom FunctionCodeThe logic appears in only one workflow
Custom FunctionThe same logic is copied across multiple workflows (updates propagate from one source)
Workflow vs. inlineWorkflow nodeThe steps could be tested, versioned, or triggered independently
InlineThe steps only make sense in the context of the current workflow
Email vs. ActionEmail nodeYou need a quick email with standard fields (to, subject, body)
Action nodeYou need more control (templates, attachments, tracking) via a full email connector

​
